Mate200
Revo Mate200
- Description
- Technical Detail
- Additional Equipment
Description

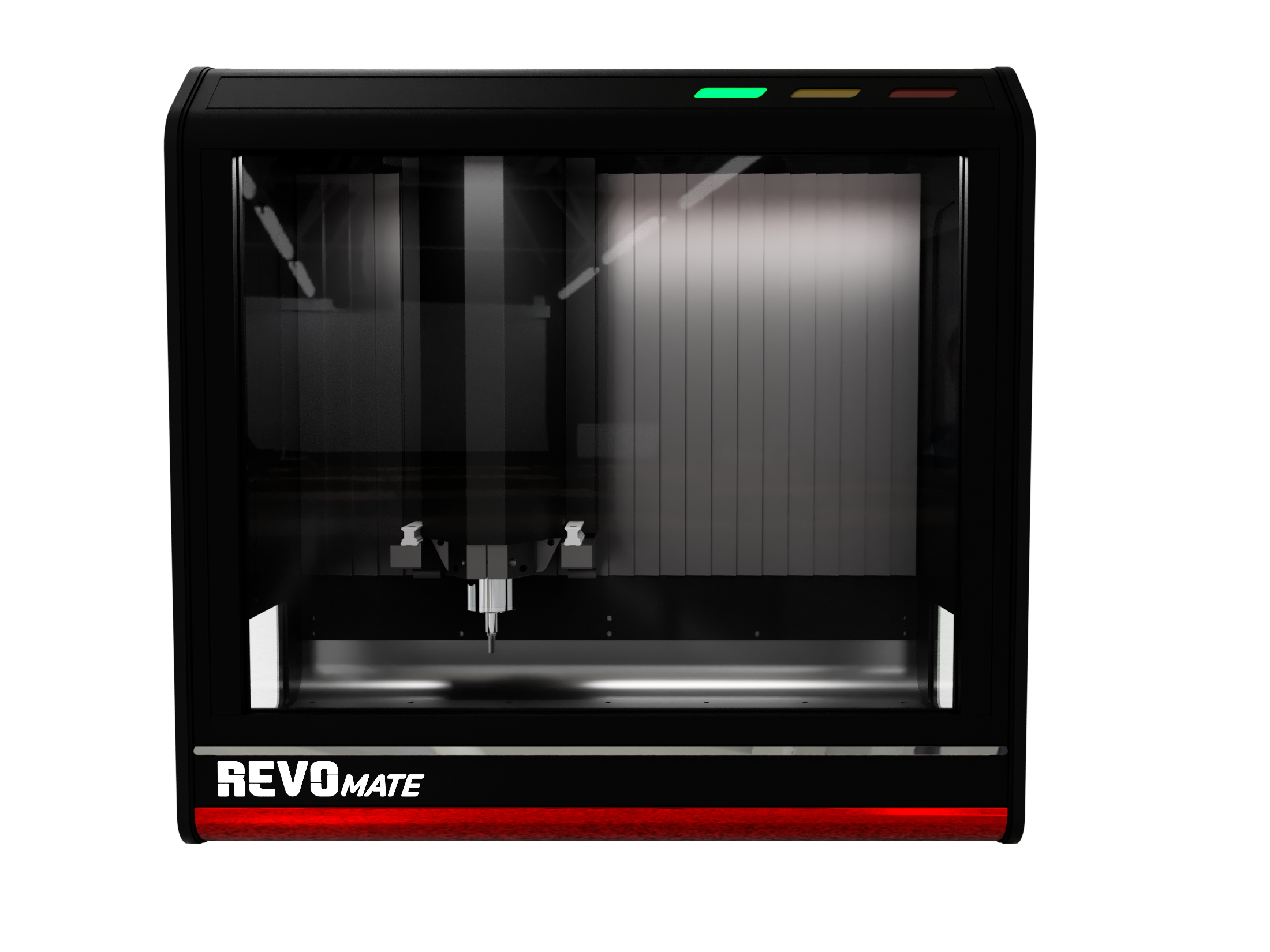

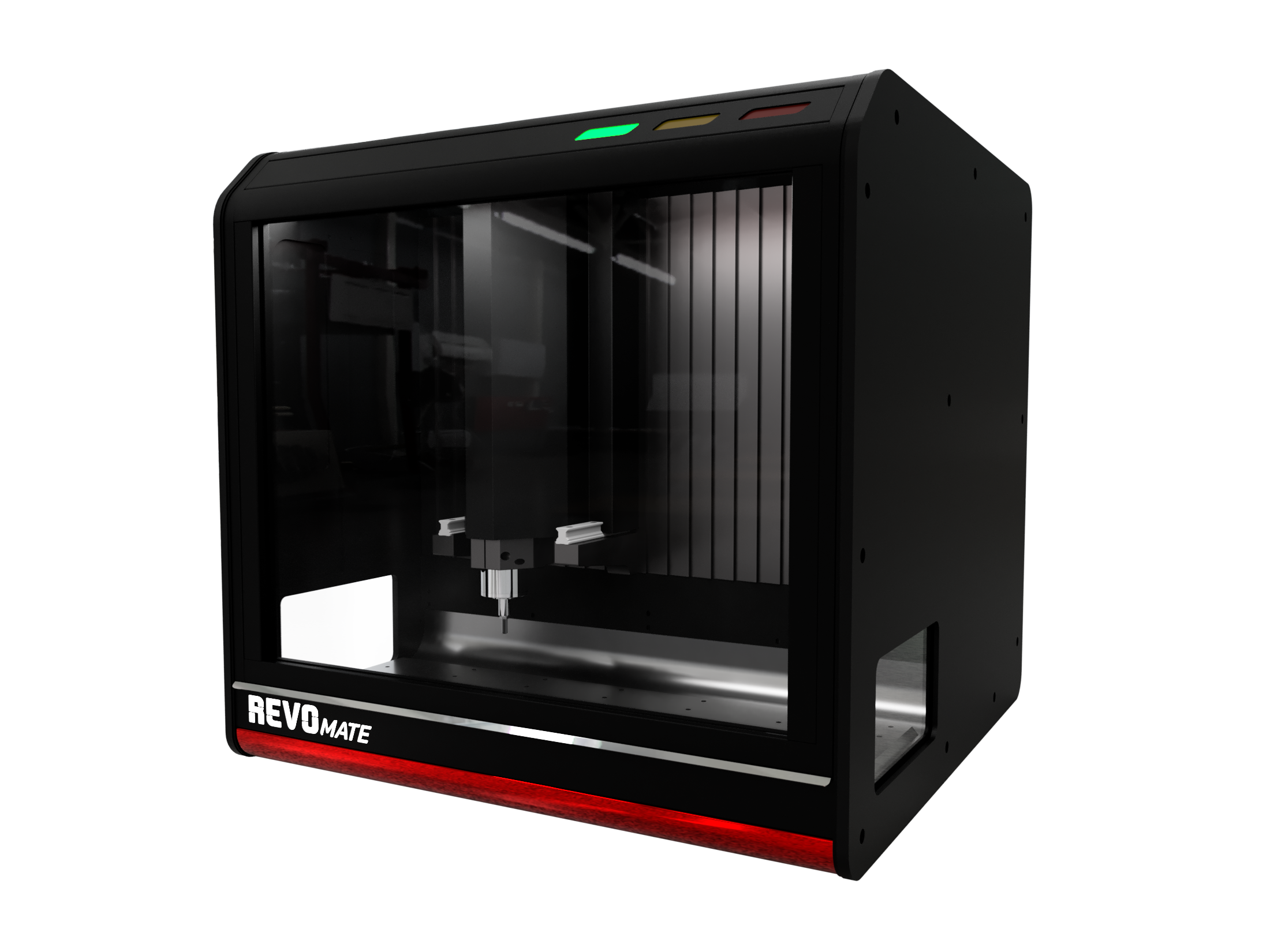

REVO MATE 200 is a versatile CNC milling system that offers machining solutions from precise prototyping to high-volume production, featuring a cast body and a 1.5 kW, 40.000 rpm spindle.
With a 420x200 mm working area and 0.025/300 mm positioning accuracy, it ensures excellent surface quality on non-ferrous metals and engineering plastics.
ts compact size, low energy consumption, and portable structure make it an ideal solution for diverse production environments such as offices, workshops, R&D units, and production lines.
The 1.5 kW, 40,000 rpm high-speed spindle can be doubled in power. The dual-spindle option enables machining of two identical parts simultaneously.
Technical Detail
| Axis Travels (X,Y,Z) | 420x200x170 mm |
|---|---|
| Clamping Area | 700x200 mm |
| Spindle-Table Distance | 60-230 mm |
| Max. Table Load | 30 Kg |
| Feed Rate (X,Y,Z) | 6,6,2 m/dk |
| Rapid (X,Y,Z) | 6,6,2 m/dk |
| Positioning/Repetability | 0,025/300 mm |
| Spindle Speed (Max.) | 40.000 rpm |
| Spindle Power | 1,5 kW |
| Torque (Max) | 0,35 Nm |
| Tool Holder | ER16 |
| Maks. Tool Diameter | 10 mm |
| Maks. Tool Length | 75 mm |
| Motor Type | Servo Motor |
| Control Unit | Masso Touch 15 inch Touchscreen |
| Voltage | 230 V AC 50 Hz |
| Energy Consumption (at Full Load) | 2,4 kW |
| Machine Base | Cast Aluminum |
| Chip Capacity | 5 lt |
| Dimensions (W,D,H) | 800x850x850 mm |
| Weight | 140 Kg |
| Period | 2 years |
